Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

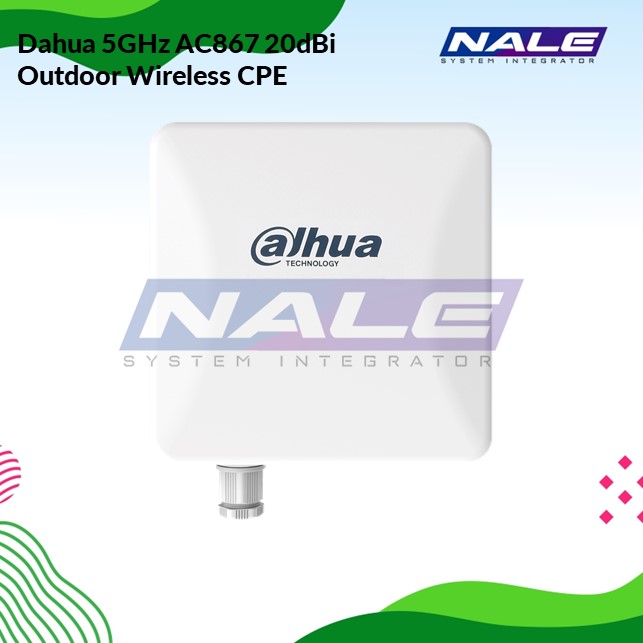

| Model | DH-PFWB5-10ac | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wireless |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WLAN Standard | IEEE 802.11 a/n/ac | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Radio Mode | MIMO 2×2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Radio Frequency Band | 5.150 – 5.850 GHz (FCC 5.150 – 5.250 and 5.725 – 5.850 GHz) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Transmit Power | Up to 30 dBm (country dependent) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Receive Sensitivity | Varying between -95 and -64 dBm depending on modulation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Channel Size | 5,10,20,40, 80 MHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Modulation Schemes | 802.11 a/n: OFDM (64-QAM, 16-QAM, QPSK, BPSK)
802.11 ac: OFDM (256-QAM, 64-QAM, 16-QAM, QPSK, BPSK) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Data Rates | 802.11 ac @ 40 MHz: 400, 360, 300, 270, 240, 180, 120, 90, 60, 30 Mbps
802.11 ac @ 80 MHz: 866, 780, 650, 585, 520, 390, 260, 195, 130, 65 Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Error Correction | FEC, LDPC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Duplexing Scheme | Time division duplex | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Transmission Distance | 0-5km (recommended), max≥7km | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Antenna |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Type | Integrated directional panel antenna | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain | 20dBi | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wired |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Interface | 10/100/1000 Base-T, RJ45 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Software |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wireless Operating Modes | Access point (auto WDS), access point (TDMA), station (WDS, TDMA ), station (ARP NAT) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wireless Techniques | Smart station polling, smart auto-channel, adaptive auto modulation, automatic transmit power control (ATPC) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wireless Security | WPA/WPA2 personal, WPA/WPA2 enterprise, WACL, user isolation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Wireless QoS | 4 queues prioritization on TDMA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Operating Modes | Bridge, router iPv4, router IPv6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Network Techniques | Routing with and without NAT, VLAN | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| WAN Protocols | Static IP, DHCP client, PPPoE client | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Services | DHCP server, SNMP server, NTP client, router advertisement daemon, ping watchdog | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Management | HTTP(S) GUI, SSH, SNMP read, Telnet | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Tools | Site survey, link test, antenna alignment | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Physical |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Dimensions | 185mm (length)× 185mm (width )× 81mm (height ) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Weight | 400 g | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Mounting | Pole mounting bracket included | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Supply | 12 – 24 VDC passive PoE (24 V passive PoE adapter is included in the package) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Source | 100 – 240V AC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Power Consumption (max) | 10W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environmental |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Operating Temperature | -30°C ~ +70°C | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Humidity | 0 ~ 90 % (non-condensing) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| System Monitoring | SNMP, Syslog, Web UI, DWMP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Regulatory |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Certification | FCC/CE | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Internal Antenna |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Frequency Range | 5.1 – 5.9 GHz | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Gain | 20 dBi | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Polarization | Dual linear | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Cross-pol Isolation | 27 dBi | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| VSWR | <1.8 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Azimuth Beam Width (H pol) | 10° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Azimuth Beam Width (V pol) | 10° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Elevation Beam Width | 10° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Technical Specification |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Receive
Sensitivity (dBm) |
802.11
ac (40MHz) |
400
Mbps |
360
Mbps |
300
Mbps |
270
Mbps |
240
Mbps |
180
Mbps |
120
Mbps |
90
Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| -70 | -72 | -76 | -78 | -80 | -84 | -87 | -92 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 60
Mbps |
30
Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| -94 | -95 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 802.11
ac (80MHz) |
866
Mbps |
780
Mbps |
650
Mbps |
585
Mbps |
520
Mbps |
390
Mbps |
260
Mbps |
195
Mbps |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| -64 | -66 | -70 | -72 | -74 | -78 | -81 | -85 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 130 Mbps | 65
Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| -88 | -90 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Output
Power (dBm, combined) |
802.11
ac (40MHz) |
400
Mbps |
360
Mbps |
300
Mbps |
270
Mbps |
240
Mbps |
180
Mbps |
120
Mbps |
90
Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 26 | 27 | 28 | 29 | 30 | 30 | 30 | 30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 60
Mbps |
30
Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 30 | 30 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 802.11
ac (80MHz) |
866
Mbps |
780
Mbps |
650
Mbps |
585
Mbps |
520
Mbps |
390
Mbps |
260
Mbps |
195
Mbps |
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 24 | 25 | 25 | 26 | 27 | 28 | 28 | 29 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 130 Mbps | 65
Mbps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 29 | 29 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
