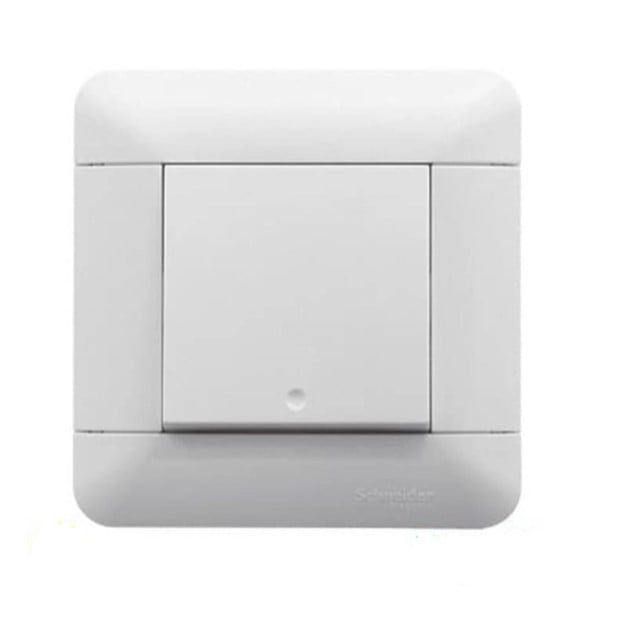

Schneider Saklar Single Arcato 1G 1W White (E8131L1_WE)
Rp11.655
Deskripsi
| range of product | Arcato |
|---|---|
| product or component type | Switch |
| device presentation | Complete product |
| load type | Resistive Fluorescent |
| colour tint | White |
| device mounting | Flush 35 mm |
|---|---|
| mounting support | Mounting box conforming to BS 4662 |
| fixing mode | By screws M4 x 25 mm By screws M3.5 x 25 mm |
| fixing center | 60.3 mm |
| switch function | 1-way |
| number of gangs | 1 gang |
| dolly size | 51.2 x 50 mm |
| actuator | Rocker |
| rated current | 10 AX at 250 V AC 50 Hz |
| connections – terminals | Pillar terminals |
| clamping connection capacity | 1 x 4 mm² copper cable (solid) 1 x 4 mm² copper cable (stranded) 1 x 1.5…4 x 1.5 mm² copper cable (solid) 1 x 1.5…4 x 1.5 mm² copper cable (stranded) 1 x 2.5…2 x 2.5 mm² copper cable (solid) 1 x 2.5…2 x 2.5 mm² copper cable (stranded) |
| material | Polycarbonate: collar Polycarbonate: cover Polycarbonate: dolly Extruded brass: terminals Nylon: shutter Brass: contact Steel: spring |
| height | 86 mm |
| width | 86 mm |
| standards | MS IEC 60669-1 GB 16915.1 BS EN 60669-1 IEC 60669-1 SS 227-1 |
|---|---|
| product certifications | CCC |
| IP degree of protection | IP20 |
| ambient air temperature for operation | -5…40 °C |
| ambient air temperature for storage | -5…60 °C |
| relative humidity | 0…95 % non-condensing |
| operating altitude | <= 2000 m |
